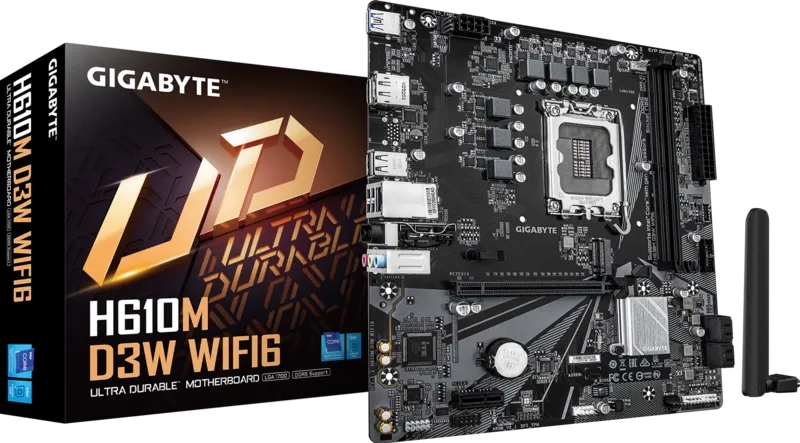

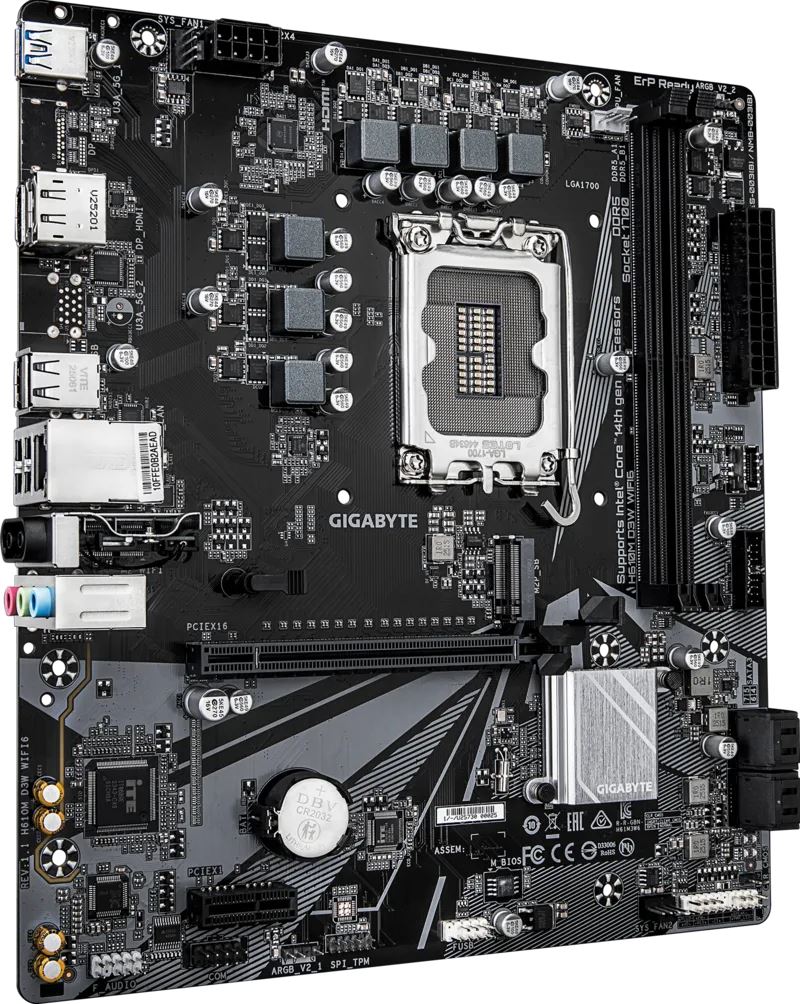

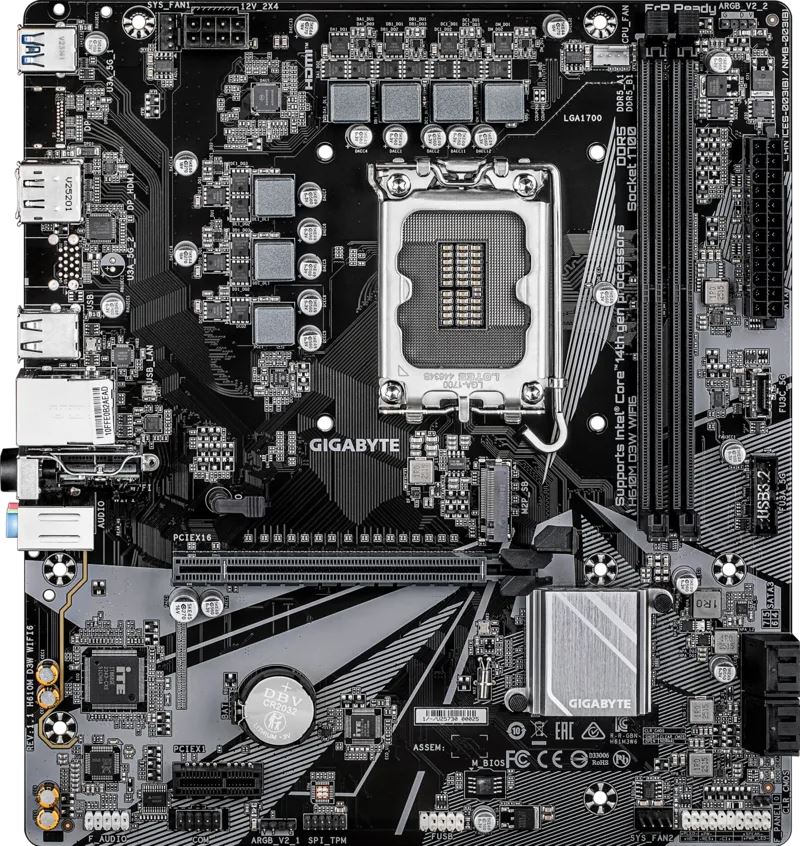

Gigabyte H610M D3W WIFI6 Motherboard For Intel 14th, 13th & 12th Gen Processors - LGA1700 Socket

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU

14th and 13th Generation Intel® Core™ i9/i7 Processors:
- Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium®Gold and Celeron® Processors:
- Support for DDR5 4800/4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Realtek® Wi-Fi 6 RTL8851BE
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 80MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

* Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.

CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable RGB Gen2 LED strip headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper

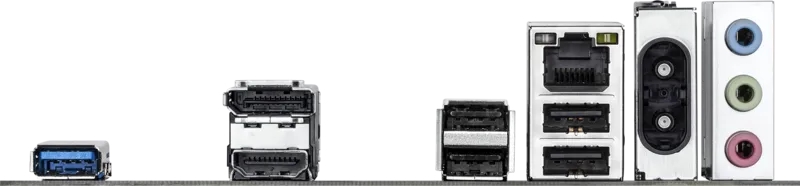

1 x DisplayPort*
1 x HDMI port*
1 x USB 3.2 Gen 1 port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x antenna connectors
3 x audio jacks

* Actual support may vary by CPU.

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Smart Backup
