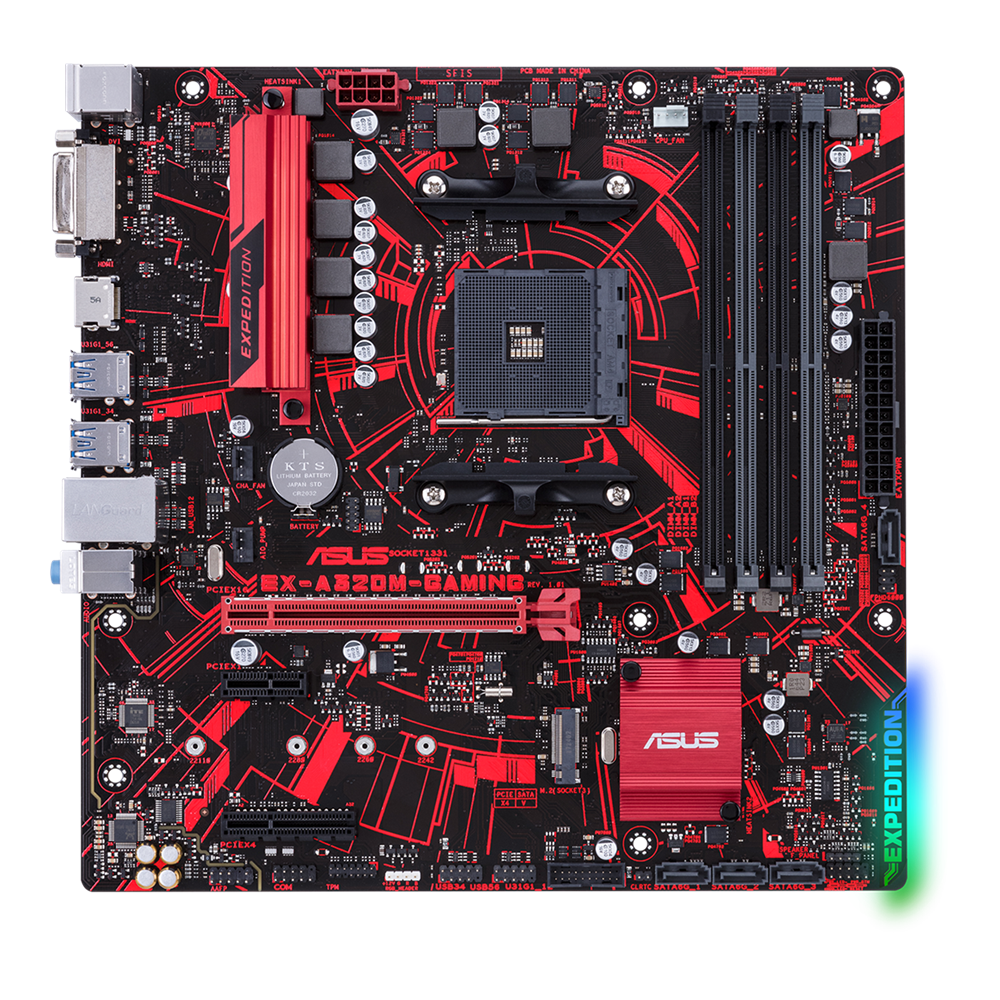

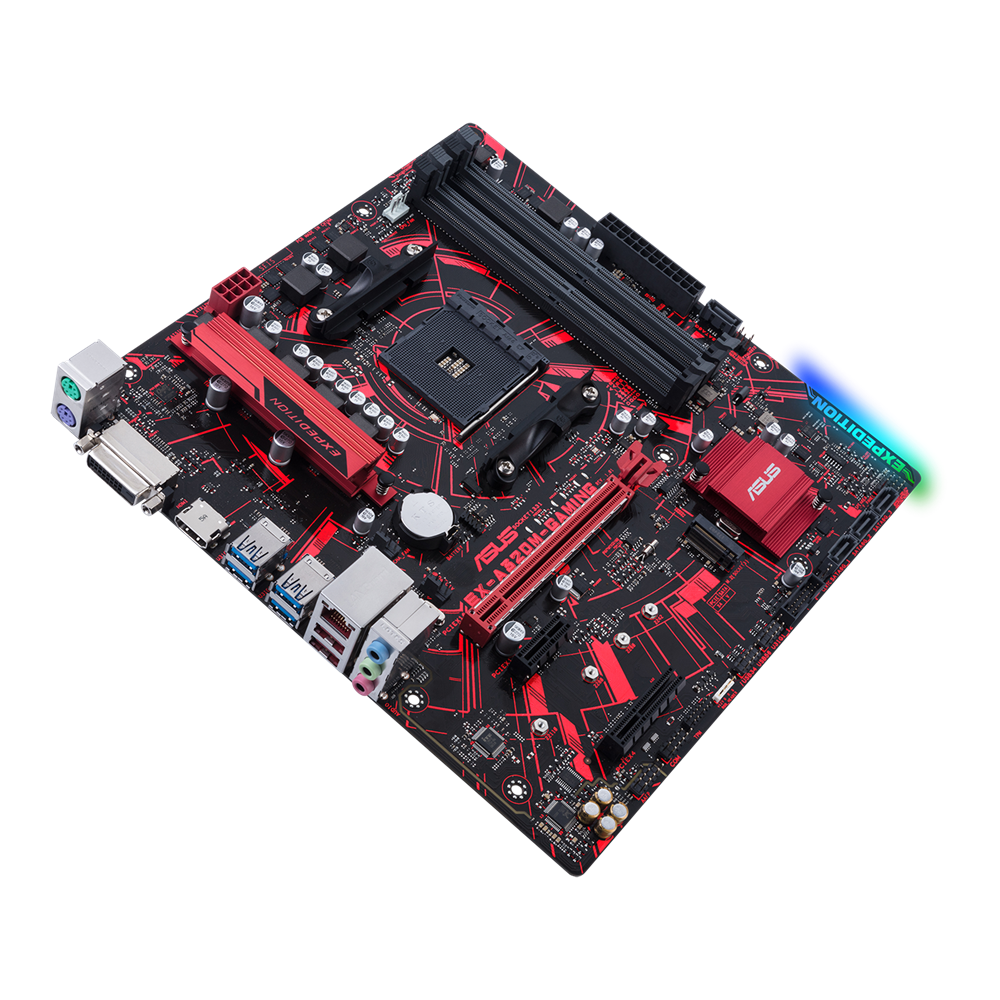

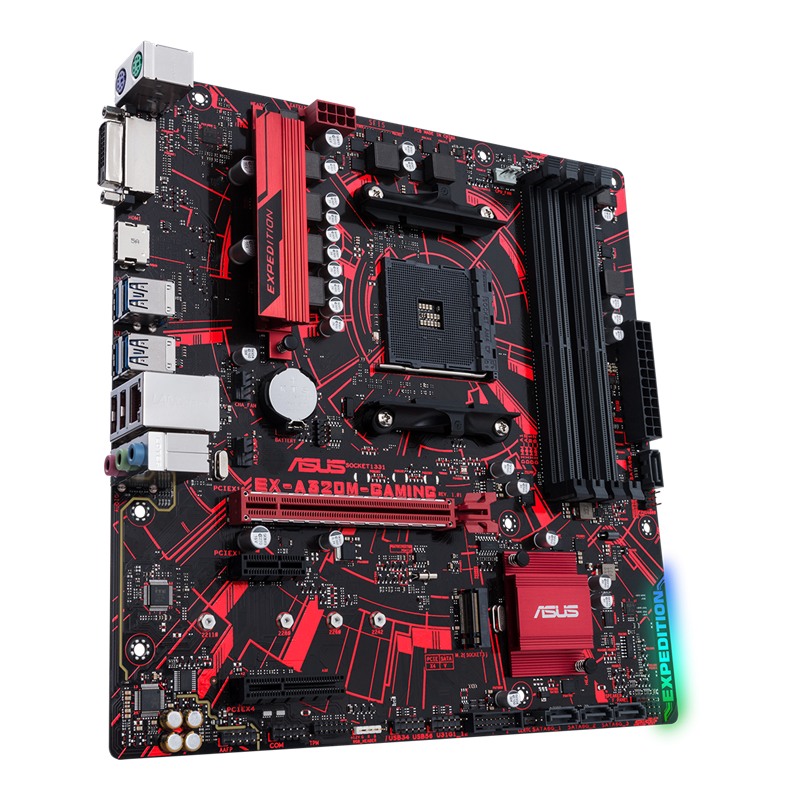

Asus EX-A320M-GAMING Micro ATX Motherboard for AMD 1st/ 2nd Gen & 7th Gen A-Series/ Athlon Processors - AM4 Socket

CPU

AMD AM4 Socket for AMD Ryzen/AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation/7th Generation A-series/Athlon X4/Athlon Processors

Supports CPU up to 8 cores

Chipset

AMD A320

Memory

AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors

4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/

2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory

AMD 7th Generation A-Series/Athlon X4 Processors

4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Un-buffered Memory

ECC Memory (ECC model) support varies by CPU.

Graphic

ntegrated Graphics in the AMD Ryzen with Radeon Vega Graphics/ 7th Generation A-Series APU

Multi-VGA output support : HDMI/DVI-D ports

- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz

- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

Maximum shared memory of 2048 MB (for iGPU exclusively)

Expansion Slots

AMD Ryzen Processors

1 x PCIe 3.0/2.0 x16 (x16 mode)

AMD 7th Generation A-series/Athlon Processors

1 x PCIe 3.0/2.0 x16 (x8 mode)

AMD A320 chipset

1 x PCIe 2.0 x4 (x2 mode)

1 x PCIe x1

Storage

AMD Ryzen Processors :

1 x M.2 x4 Socket 3(SATA 6Gb/s & PCI-E Gen3 x4 link),

AMD 7th Generation A-series/Athlon Processors :

1 x M.2 Socket 3,

AMD A320 chipset :

4 x SATA 6Gb/s port(s),

LAN

Realtek RTL8111H, 1 x Gigabit LAN Controller(s)

Audio

Realtek ALC887 8-Channel High Definition Audio CODEC

Audio Feature :

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

- Unique de-pop circuit: Reduces start-up popping noise to audio outputs

USB Ports

AMD A320 chipset :

6 x USB 3.0 port(s) (4 at back panel, , 2 at mid-board)

AMD A320 chipset :

6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)

Special Features

ASUS 5X Protection III :

- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage

- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!

- ASUS Overvoltage Protection: World-class circuit-protecting power design

- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

- ASUS DIGI+ VRM: 6 Phase digital power design

Non-stop Durability :

- Anti-moisture coating - Outstanding protection against moisture and corrosion

- USBGuard- 120% higher voltage tolerance

Non-stop Gaming :

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

- Unique de-pop circuit: Reduces start-up popping noise to audio outputs

Non-stop Challenger :

- ASUS iCafe Labs Certified - Top games and 100+ peripherals tested

AURA :

- Aura Lighting Control

- Aura RGB Strip Headers

- Aura Lighting Effects Synchronization with compatible ASUS ROG devices

ASUS Q-Design :

- ASUS Q-Slot

- ASUS Q-DIMM

Digi+VRM

Operating System Support

Windows 10 64-bit

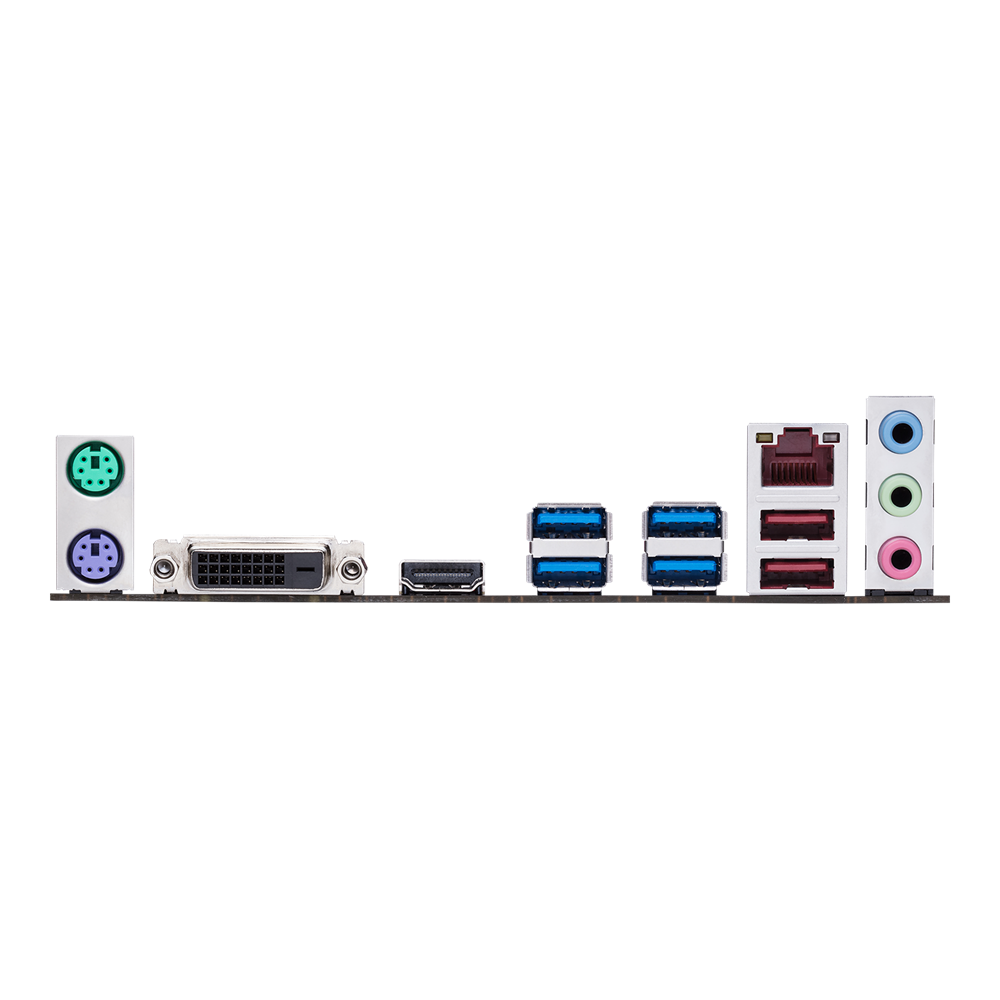

Back I/O Ports

1 x PS/2 keyboard (purple)

1 x PS/2 mouse (green)

1 x DVI-D

1 x HDMI

1 x LAN (RJ45) port(s)

4 x USB 3.1 Gen 1 (blue) ,

2 x USB 2.0

3 x Audio jack(s)

Internal I/O Ports

1 x AAFP connector

1 x RGB Header(s)

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)

4 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s)

1 x Chassis Fan connector(s)

1 x AIO_PUMP connector

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x System panel(s)

1 x Clear CMOS jumper(s)

1 x 14-1 pin TPM connector

1 x COM port header

1 x AIO PUMP Header

Accessories

User's manual

I/O Shield

2 x SATA 6Gb/s cable(s)

1 x M.2 Screw Package

1 x Supporting DVD

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control

Form Factor

mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Warranty

3 Years Manufacturer's Warranty
