Hover to zoom1/6Limited Time Deal
26% off — limited stock
Inclusive of all taxes
Enter your pincode to check delivery options.

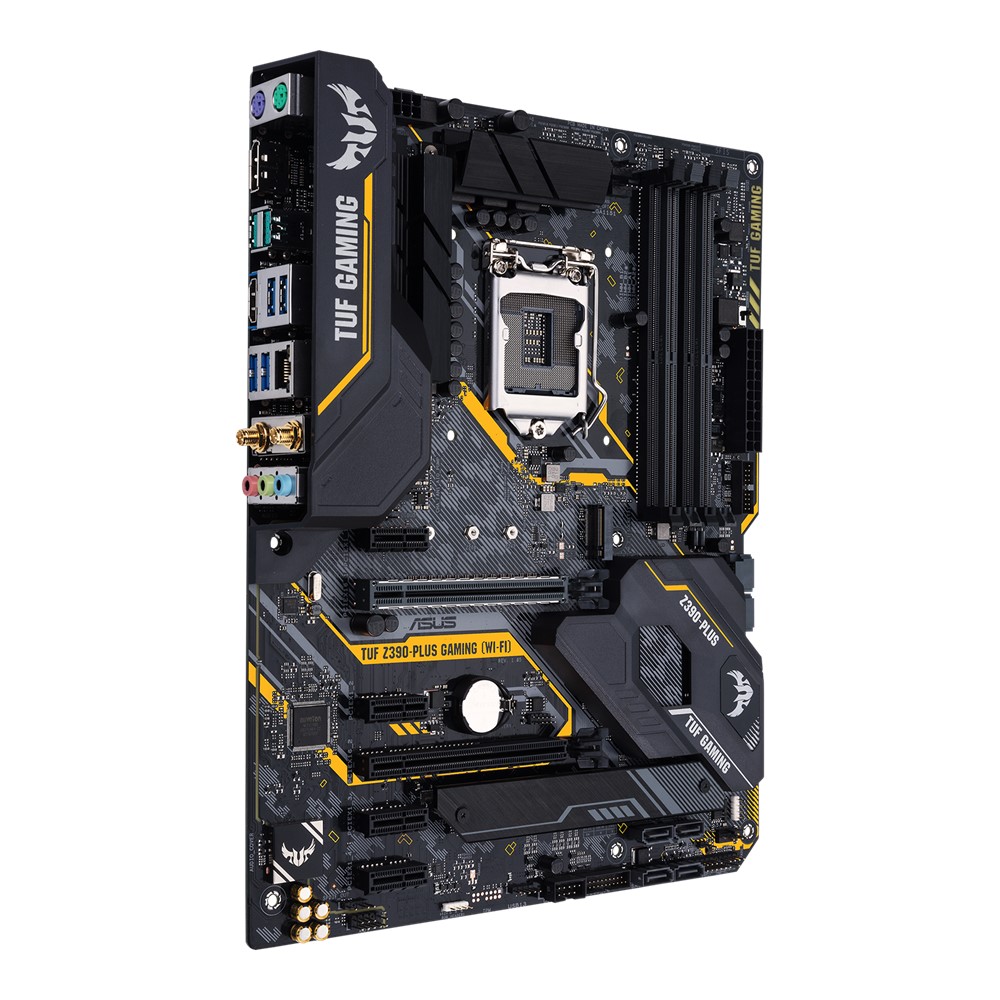

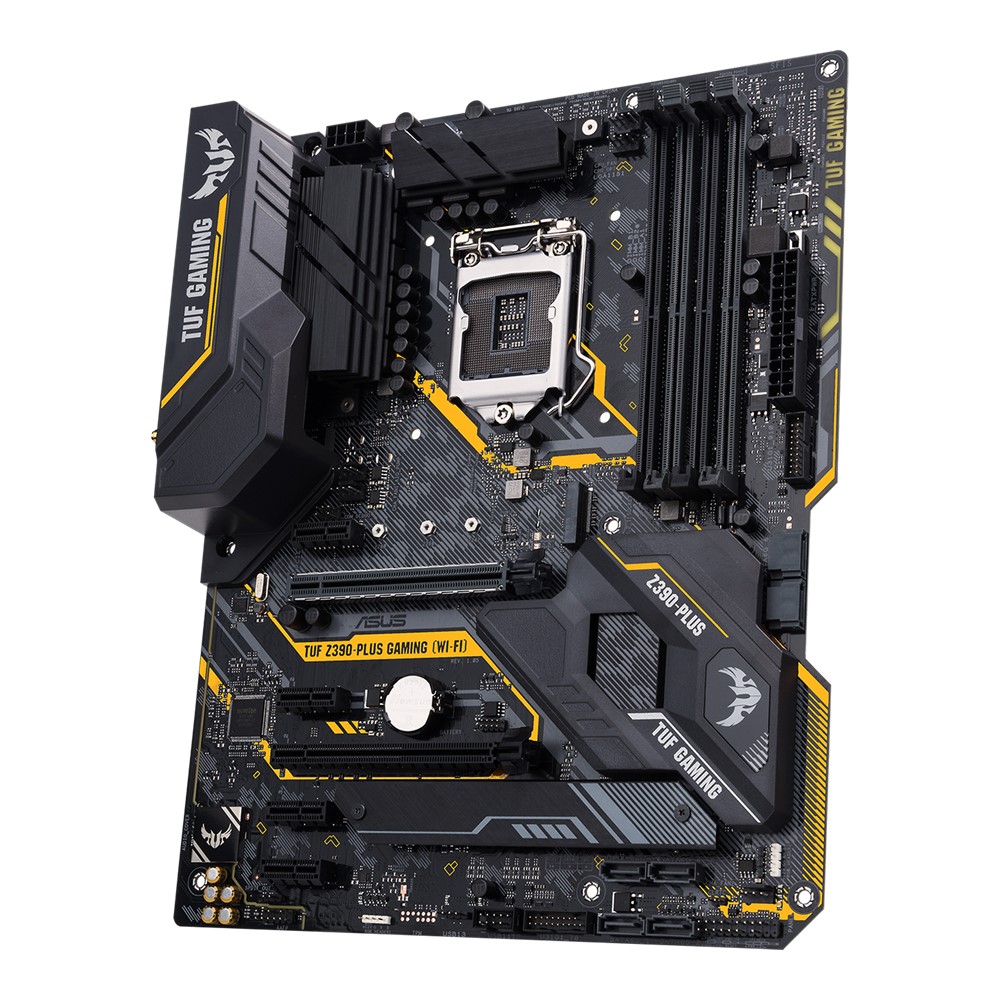

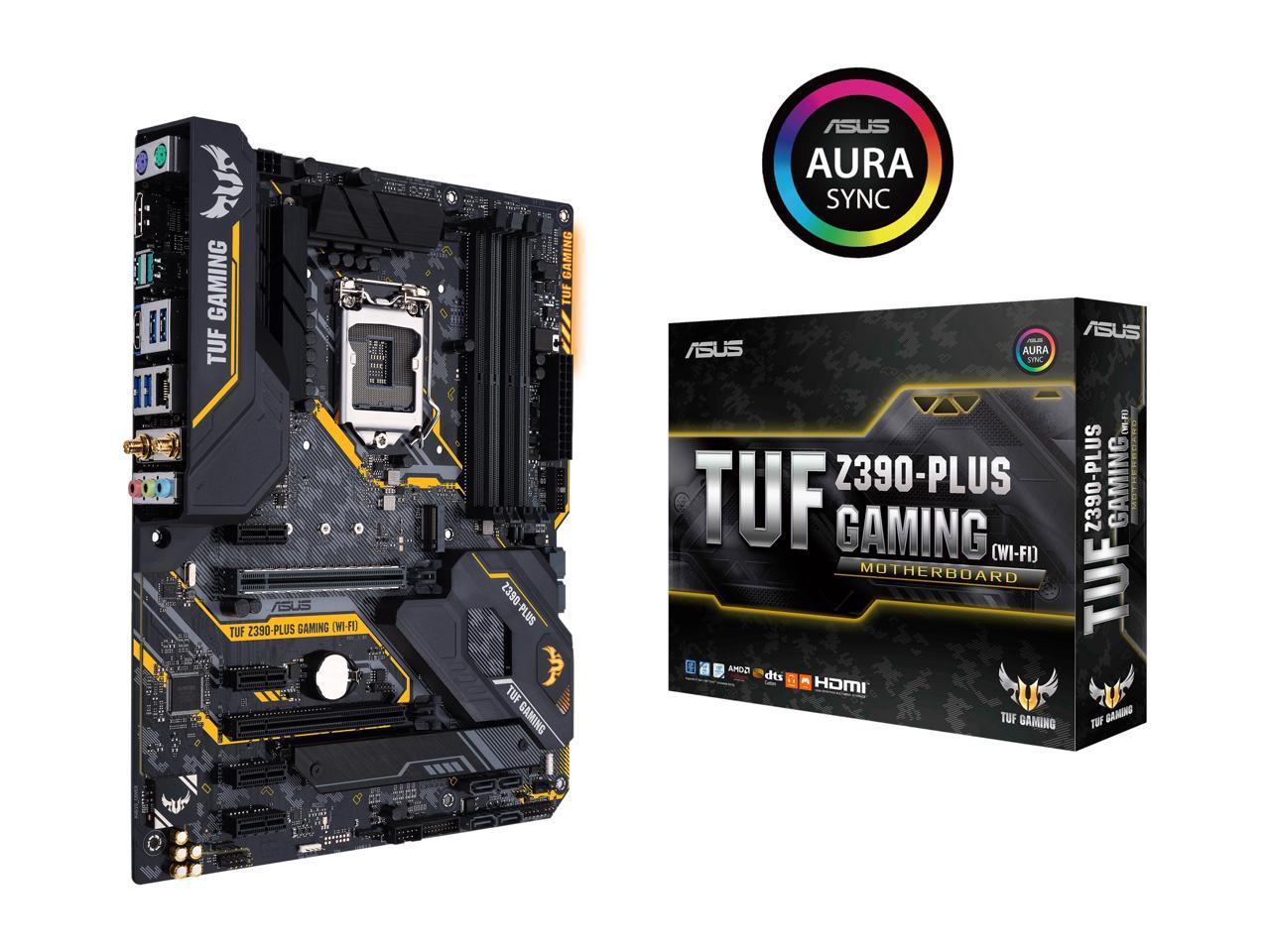

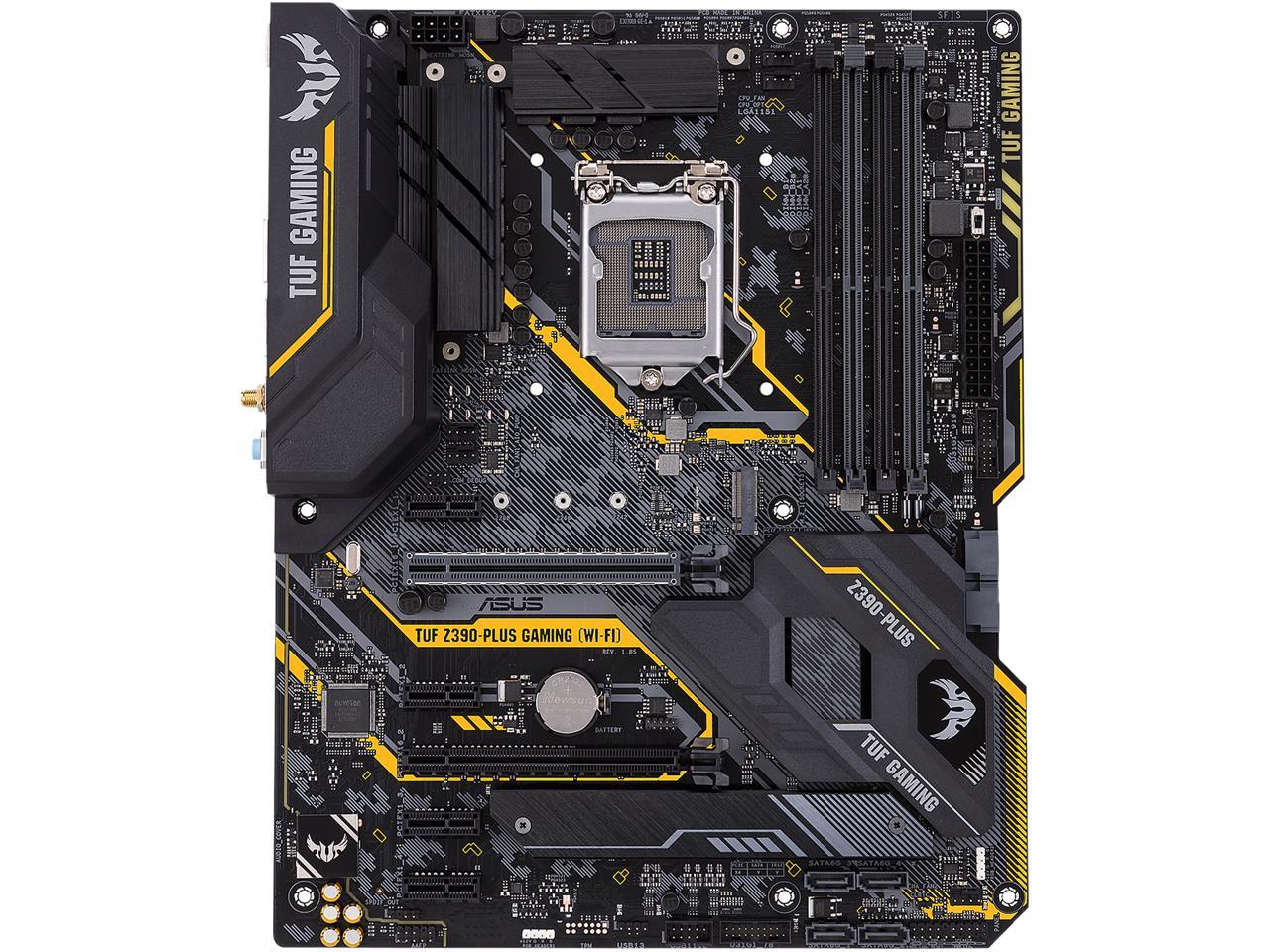

| Product Name | Asus TUF Z390-PLUS GAMING (WI-FI) Motherboard for Intel 9th/ 8th Gen Processors - LGA1151 Socket |
| Category | Motherboards |
| SKU / Model No. | Asus TUF Z390-PLUS GAMING (WI-FI) Motherboard |
Information may vary. Check product packaging for exact details.
|
Intel Z390 ATX gaming motherboard with OptiMem II, Aura Sync RGB LED lighting, DDR4 4266+ MHz support, 32Gbps M.2, Intel Optane memory ready,
Arm Your Battlestation TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case. Easy PC DIY TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance. TUF gaming alliance TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. SETUP AND CONFIGURATION TUF Gaming motherboards are designed to be easy to set up and configure just the way you want, even for first-time builders. With simplified CPU and memory overclocking to optimize and boost performance, intelligent cooling controls for better system stability, and helpful troubleshooting tools to get you up and running quickly if you encounter problems, TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. GAMING PERFORMANCE AND ASTHETIC CUSTOMIZATION TUF Gaming Z390 provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, immersive audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create the perfect gaming atmosphere. INTEL Z390 CHIPSET The Intel® Z390 is a single-chipset design that supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the chipset provides a maximum of six USB 3.1 Gen 2 ports, four USB 3.1 Gen 1 ports, and 32Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z390 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance. READY FOR SOCKET 1151 FOR 9TH / 8TH GEN INTEL® CORE™, PENTIUM® GOLD AND CELERON® PROCESSORS This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance. SPECIFICATIONS: |
| Brand | Asus |
| Model | TUF Z390-PLUS GAMING (WI-FI) |
| CPU | Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list |
| Chipset | Intel® Z390 |
| Memory | 4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/
3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor. |
| Graphics | Integrated Graphics Processor- Intel® UHD Graphics support Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays |
| Multi-GPU Support | Supports AMD CrossFireX™ Technology |
| Audio |
Realtek® ALC S1200A 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| LAN | Intel® I219V, featuring Turbo LAN TUF LANGuard Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY) |
| Expansion Slots | 1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 4 x PCIe 3.0/2.0 x1 *For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings. |
| Storage Interface | Intel® Z390 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1) PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card |
| Wireless Data Network | Intel® Wireless-AC 9560 Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports 2x2 MU-MIMO Supports channel bandwidth: HT20/HT40/HT80/HT160 |
| Bluetooth | Bluetooth® 5.0 |
| USB | Intel® Z390 Chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A) Intel® Z390 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 4 at mid-board) Intel® Z390 Chipset : 3 x USB 2.0/1.1 port(s) (3 at mid-board) |
| Special Features | Fan Xpert4 - Advanced fan and liquid controls for ultimate cooling and quietness ASUS TUF PROTECTION - ASUS DIGI+ VRM: Precision control for stable power - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! ASUS Optimem II： - Optimem (Improved DDR4 stability) ASUS EPU : - EPU TUF ENGINE! Power Design : - TUF Components (Choke, Cap. & MOSFET; certified by military-standard) AURA : - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Turbo LAN - PC Cleaner - File Transfer - ASUS C.P.R.(CPU Parameter Recall) ASUS Quiet Thermal Solution : - Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution - ASUS Fan Xpert 4 ASUS EZ DIY : - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) MemOK! II - Enhance memory compatibility. More smart and convenient. Keep high performance. (Shorten the PC starting time) Q-Installer - Auto download driver and software. Friendly for first PC builder. |
| Internal I/O Connectors | 2 x Aura RGB Strip Header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 1 x CPU OPT Fan connector(s) (4 -pin) 2 x Chassis Fan connector(s) (4 -pin) 1 x AIO_PUMP connector () 1 x S/PDIF out header(s) 1 x 8-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x System panel connector |

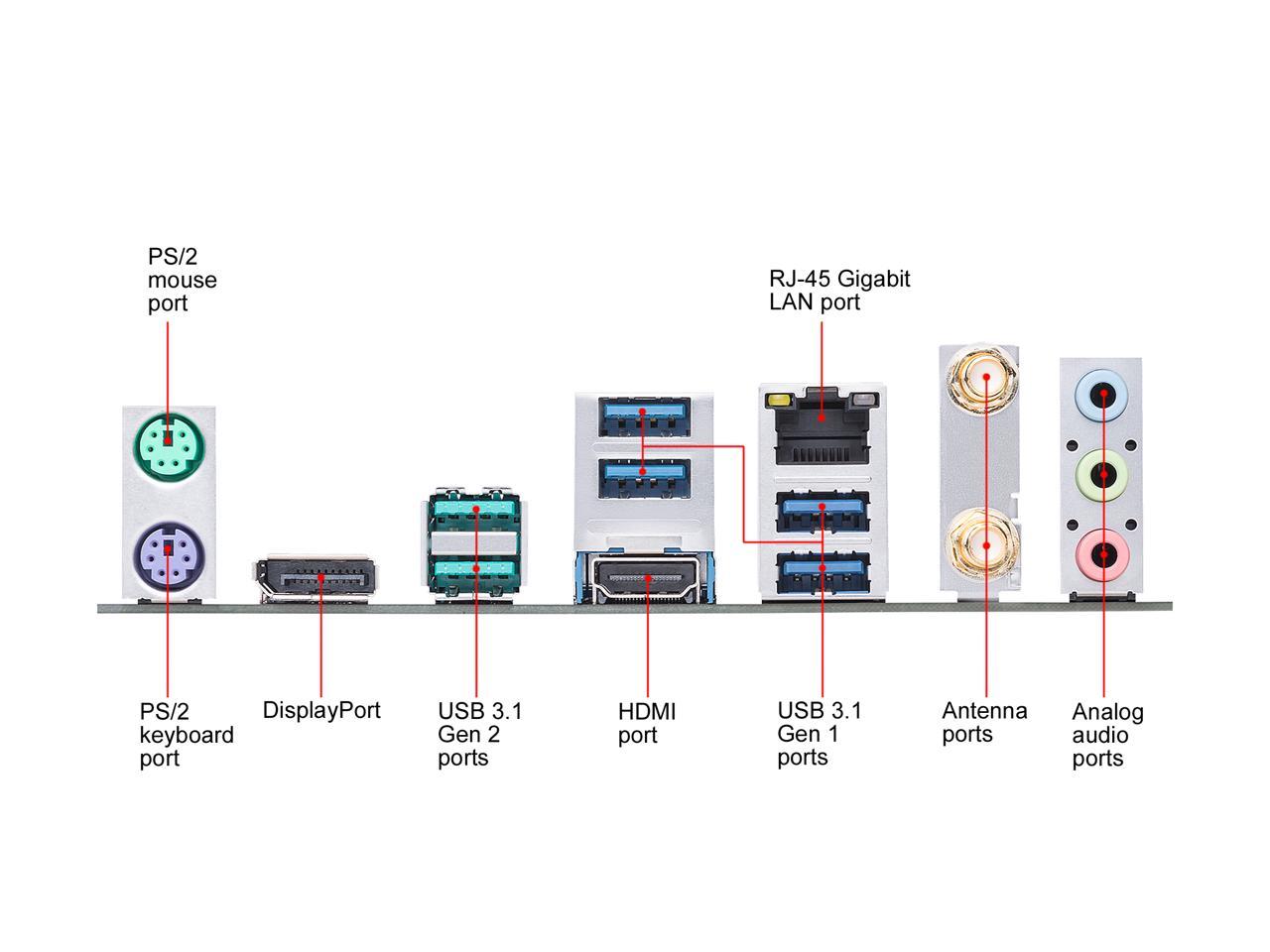

| Back I/O Ports |
1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A 2 x Wi-Fi antenna port(s) 3 x 8-channel Audio I/O |
| Accessories | iTE I/O Controller Chip |

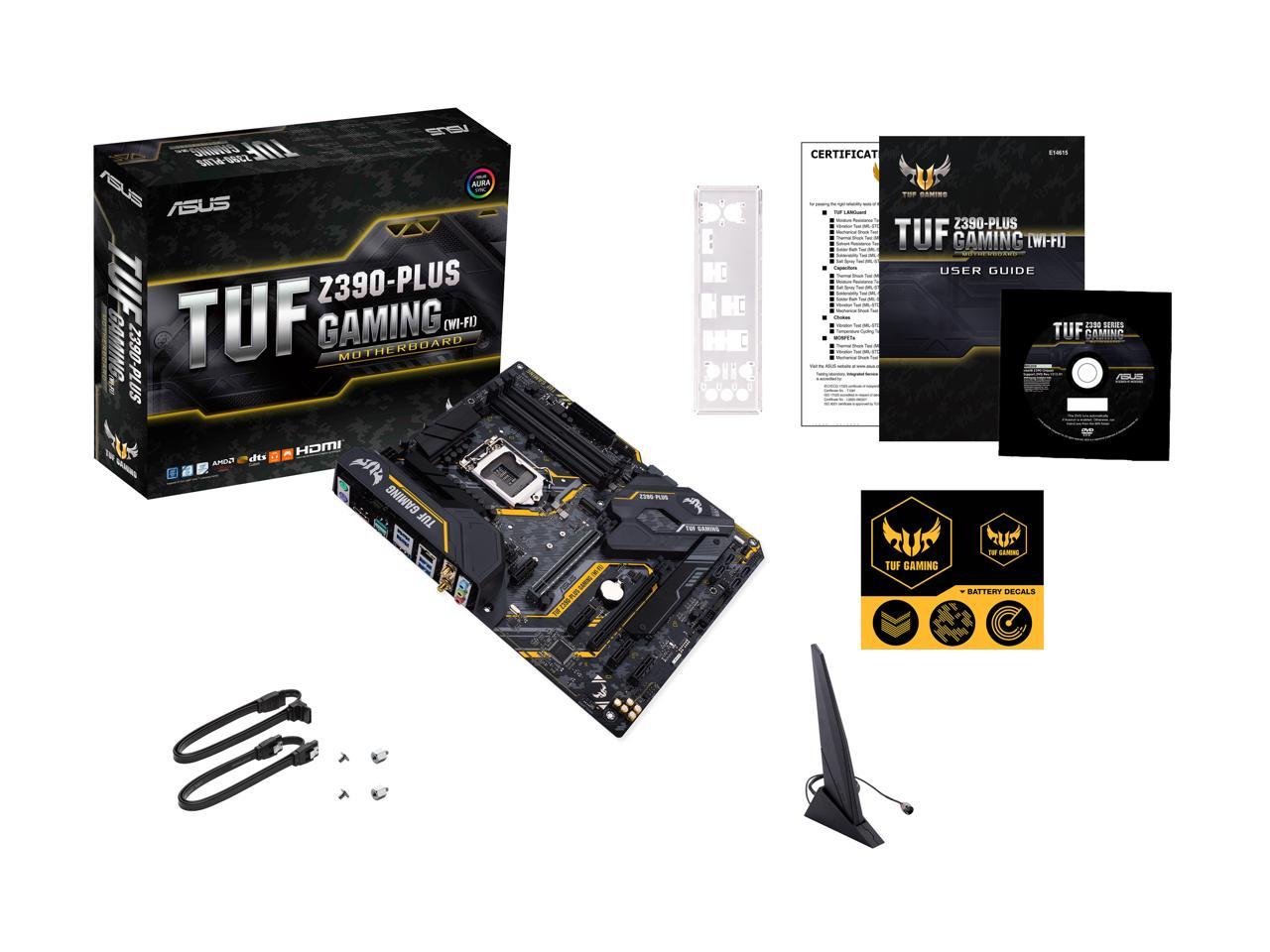

| H/W Monitoring | User´s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x TUF Gaming Sticker 1 x TUF Certification card(s) 1 x SCD (by region) 1 x Wi-Fi moving antenna |
| BIOS |
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Support Disc |
Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version) |
| Operating System | Windows® 10 64-bit |
| Management Solution | WOL by PME, PXE |
| Form Factor | ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 1 Year Seller's Warranty |
| Country Of Origin | China |
| Manufacturer | ASUS GLOBAL PTE LTD. 15A Changi Business Park Central 1, #05-01, Eightrium, Singapore 486035 |
| Importer | Rashi Peripherals Pvt.Ltd.
Rashi Complex,"A" Building, Survey 186, Dongaripada, PomanVillage, Vasai Bhiwandi Road, Dist. Thane, Maharashtra - 401208 India |
| Net Quantity | 1 |
| Product Package Dimensions (LxWxH) | 26.5x 27.5 x 5 Centimeters |
| Weight | 800g |
| Note | ***Features, Price and Specifications are subject to change without notice. |
