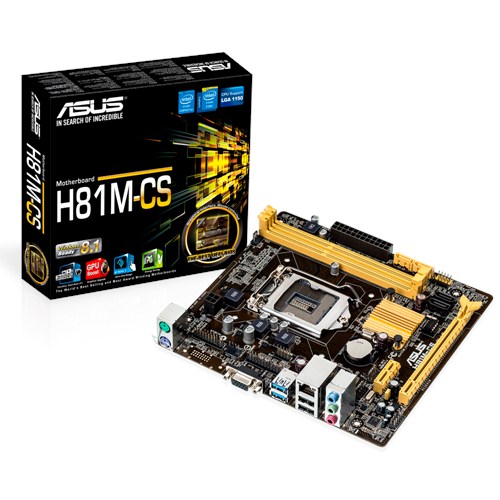

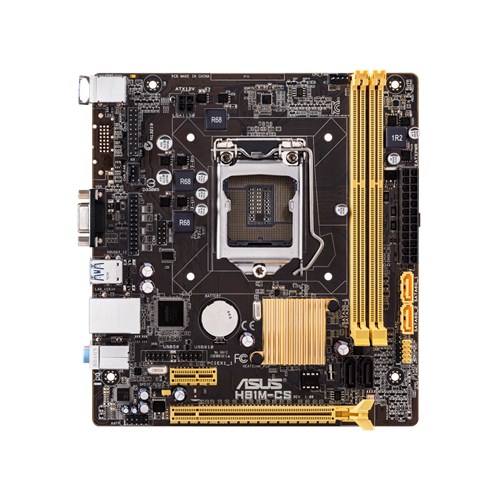

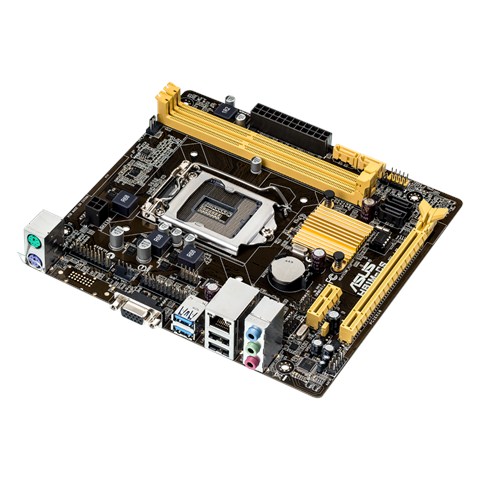

| Product Name | Asus H81M-CS Micro-ATX Motherboard for Intel 4th Generation Processors - LGA 1150 Socket |
| Category | Motherboards |
| SKU / Model No. | Asus H81M-CS |
Information may vary. Check product packaging for exact details.
Great-value H81 micro-ATX motherboard with high stability and durability, with easy-to-use UEFI BIOS and ASUS AI Suite 3 tuning utility.
SPECIFICATIONS
| Brand | Asus |
| Model | H81M-CS |
| CPU | Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel® H81 |
| Memory | 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz. |
| Graphic | Integrated Graphics Processor - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB |
| Expansion Slots | 1 x PCIe 2.0 x16 1 x PCIe 2.0 x1 |
| Storage | Intel® H81 chipset : 2 x SATA 6Gb/s port(s), yellow 2 x SATA 3Gb/s port(s), dark brown, Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology |
| LAN | Realtek® 8111GR, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking |
| USB Ports | Intel® H81 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue) Intel® H81 chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) |
| Special Features | ASUS EPU : - EPU ASUS Exclusive Features : - GPU Boost - AI Suite 3 - Ai Charger - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Disk Unlocker ASUS Quiet Thermal Solution : - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM |
| Operating System Support | Windows® 8.1 Windows® 8 Windows® 7 |

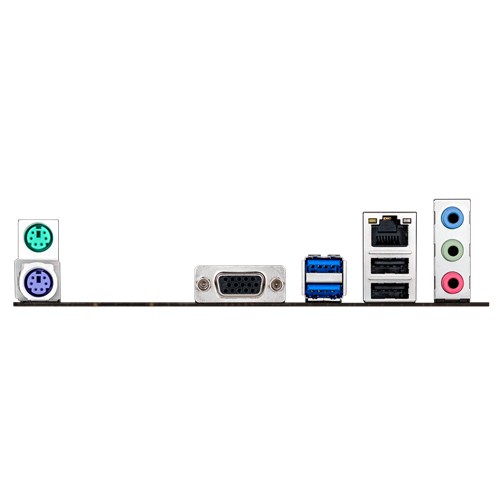

| Back I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports | 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM header 1 x LPT header 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x Chassis Intrusion connector(s) |
| Accessories | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) |
| BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WfM 2.0, DMI 2.0, WOL by PME, PXE |
| Support Disc | Drivers ASUS Utilities EZ Update Anti-Virus Software (OEM Version) |
| Form Factor | uATX Form Factor 7.5 inch x 7.0 inch ( 19 cm x 17.7 cm ) |
| Warranty | 3 Years Manufacturer's Warranty |
| Country Of Origin | China |
| Manufacturer | ASUS GLOBAL PTE LTD. 15A Changi Business Park Central 1, #05-01, Eightrium, Singapore 486035 |
| Importer | Rashi Peripherals Pvt.Ltd. Rashi Complex,"A" Building, Survey 186, Dongaripada, PomanVillage, Vasai Bhiwandi Road, Dist. Thane, Maharashtra - 401208 India |
| Net Quantity | 1 |
| Note | ***Features, Price and Specifications are subject to change without notice. |
