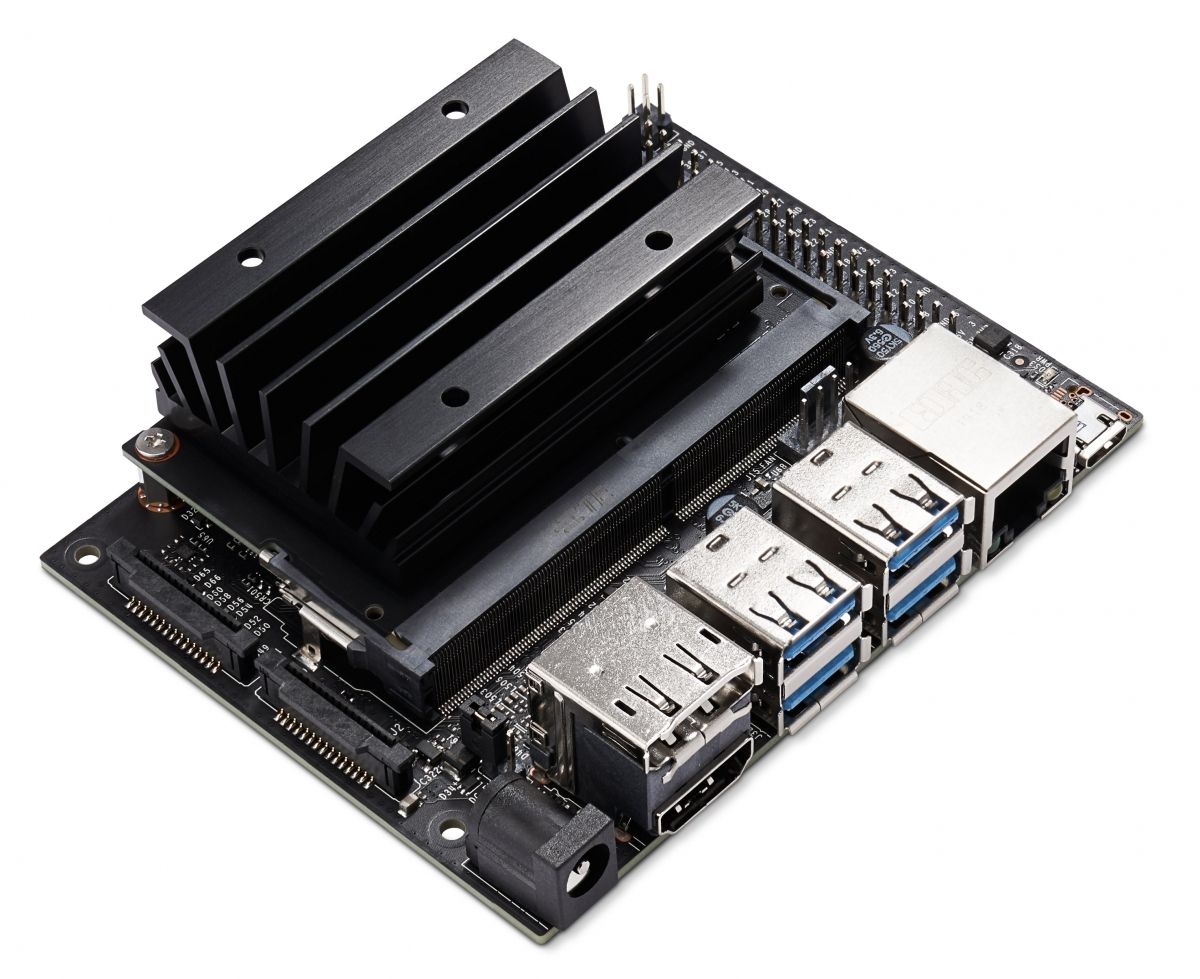

Nvidia Jetson Nano Developer Kit

Enter the world of AI through this Jetson Nano Developer kit launched by NVIDIA, and enjoy the infinite joy that AI brings to you!

Jetson Nano Kit is a small, powerful computer that enables all makers, learners, and developers to run AI frameworks and models. Insert a microSD card with a system image into the module to boot the device. With the built-in system on chip (SOC), it is able to run multiple neural networks, such as TensorFlow, PyTorch, Cafffe/Caffe2, Keras, and MXNet, which can realize image classification, object detection, segmentation, and speech processing so as to help you to build up the advanced robot and complicated AI system.

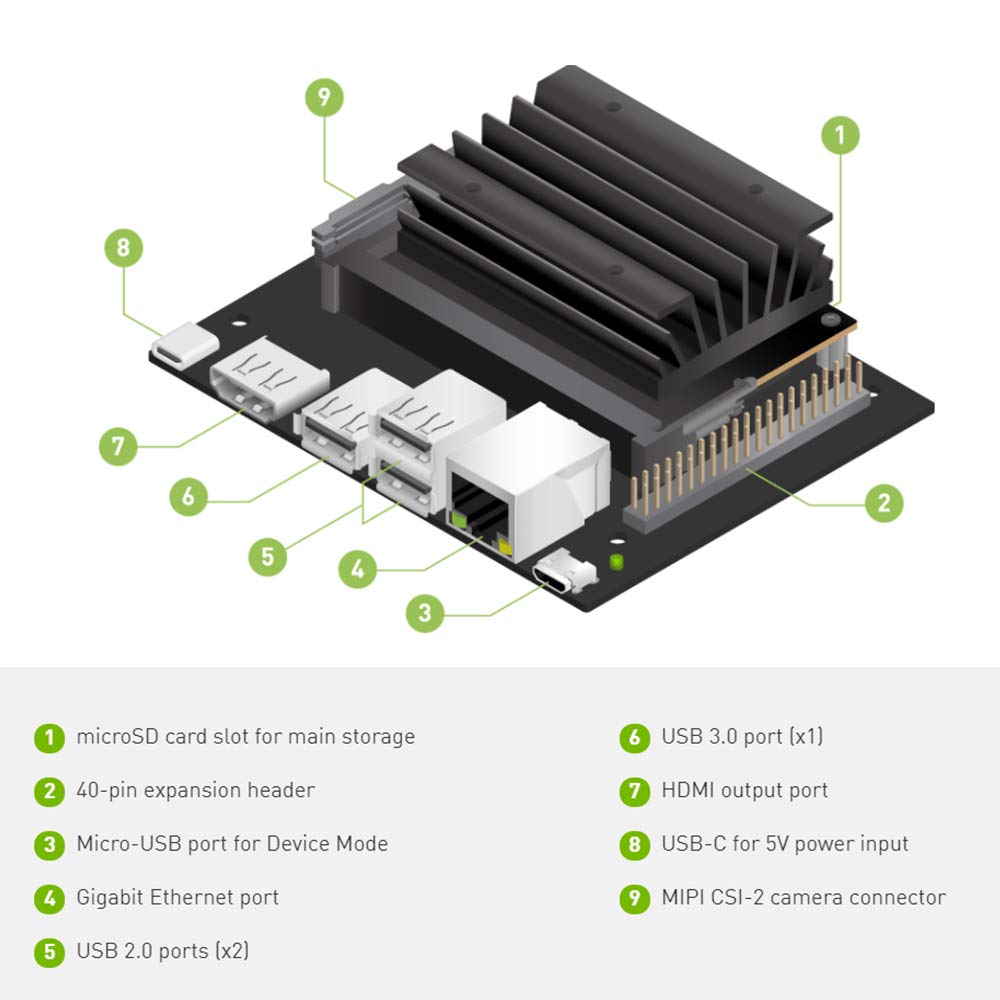

FEATURES:

① MicroSD Card Slot

② 40pin GPIO Expansion Header

③ Micro-USB

④ Gigabit Ethernet

⑤ 4*USB3.0

⑥ HDMI Output

⑦ DisplayPort Connector

⑧ Power Jack DC 5V

⑨ 2*MIPI CSI Camera Connector

SPECIFICATIONS:

• GPU: 128-core NVIDIA Maxwell™ GPU
• CPU: Quad-core ARM® A57 CPU
• Memory: 4 GB 64-bit LPDDR4
• Storage: 16GB eMMC 5.1 flash
• Micro-USB: 5V 2A
• Video Encoder: 4K @30（H.264/H.265）
• Video Decoder: 4K @60（H.264/H.265）
• Camera: 12 lanes (3×4 or 4×2) MIPI CSI-2 DPHY 1.1（1.5Gbps）
• Connectivity: Gigabit Ethernet
• Display: HDMI 2.0 or DP1.2 |eDP 1.4| DSI (1x2)
• UPHY: 1x1/2/4 PCIE, 1xUSB3.0, 3xUSB2.0
• I/O: 1xSDIO/ 2xSPI /6xI2C /2xI2S /GPIO
• Dimension: 100 x 80 x 29 mm/3.94x3.15x1.14”

DOCUMENTATION LINKS:

• Get Started With JETSO NANO
• JETSON NANO Learning
• JETSON NANO User Guide
• NVIDIA Jetpack SDK
• JETSON NANO WIKI
• Developer Blog
• FAQ
• After-Sale Service Process

Abundant Interface

Rich peripheral interfaces enable you to connect various sensors to establish AI-based applications.

High Performance

Jetson Nano adopts 64-bits ARM CPU,128 core NVIDIA GPU and 4 GB LPDDR4 storage and provides 0.5T FLOPS algorithms performance. It features high-efficiency, low power consumption, small size, and low cost.

Easy-to-use SDK

Jetson Nano is also supported by NVIDIA Jetpack, which includes a board support package（BSP）, Linux OS, NVIDIA CUSA ®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more.

The same JetPack SDK is used across the entire NVIDIA Jetson ™ family of products and is fully compatible with NVIDIA’s world-leading AI platform for training and deploying AI software. This proven software stack reduces complexity and overall effort for developers.

Update Instruction A02 vs B01:

1. The old version A02 has only one camera interface J13, and the new version B01 has one additional camera interface J49;

2. J40 and J44 in the old version A02 are combined as J50 in the new version B01. The interface has been moved and changed from vertical to horizontal one.

3. The Jetson Nano expansion kit is composed of core board and a baseplate. The core board has no eMMC so the system should be burned into the TF card when installing the system. The modules NVIDIA supplies in bulk come with eMMC, but no TF card slot. The A02 expansion board is incompatible with Jetson Nano Module with eMMC, while the B01 is compatible with not only Jetson Nano Module with eMMC but also Jetson Xavier NX Module.
